COMPACT 4-WAY CASSETTE

Indoor units for MULTISplit and Light Commercial systems

IBA1-Y 27M:53M

COMPACT 4-WAY CASSETTE: Indoor units for MULTISplit and Light Commercial systems

The perfect temperature where it matters most.

Although ceiling-mounted this unit automatically adjusts and sets temperature to provide comfort exactly at people's height. This will result in optimised indoor climate and ideal living environment where needed.



Graphic of water droplet with yellow and green gradient, BOX 2 no visible pipes and a smart drainage system.
No exposed pipes and a smart drainage system

Integrated condensate drain pump for efficient water discharge and easier installation in false ceilings. No water stagnation or exposed pipes. To keep the area tidier and have an always efficient system.

A pleasant environment positively affects work skills development

A continuous speed fan accurately sets the air flow intensity to suit any requirements. This technology avoids annoying frontal air flow while giving a feeling of comfort in the whole living environment.

Graphic of two circular arrows, BOX 2, with continuous speed fan which adjusts air intensity precisely.

Invisible and efficient

Sleep

Sleep

Night operation program that reduces sound levels and maintain suitable temperatures
Anti-cold Air

Anti-cold Air

This function can prevent cold air blowing out to avoid discomfort to the users.
Energy efficiency

Energy efficiency

Class A++ in cooling and class A+ in heating
Sleep

Sleep

Night operation program that reduces sound levels and maintain suitable temperatures
Anti-cold Air

Anti-cold Air

This function can prevent cold air blowing out to avoid discomfort to the users.
Energy efficiency

Energy efficiency

Class A++ in cooling and class A+ in heating

Technical Synthesis

Heating and cooling power

from 2.7 kW to 5.3 kW

Operating range in Heating

from 0 to 30 °C

Operating range in Cooling

from 17 to 32 °C

Noise level

From 32 db (A) to 44 dB(A)

Dimensions (Width x Depth x Height)

570x570x245

Compatible with:

Outdoor unit for Multisplit Systems: MU2-Y

Outdoor unit for Multisplit Systems

MU2-Y

Looking for Support?
Contact us: a Clivet consultant will answer your queries.

Explore our alternative solutions

DUCT 3: IDA1-Y 27M : 160M

DUCT 3

Ducted indoor unit for MULTISplit systems

IDA1-Y 27M : 160M

BOX 2 950x950: IA3-XY 70M÷160M

BOX 2 950x950

IA3-XY 70M÷160M

CEILING & FLOOR 2: IF3-XY 53M

CEILING & FLOOR 2

Ceiling and floor indoor unit for MULTISplit systems

IF3-XY 53M

CONSOLE 3: IC3-Y  27M÷53M

CONSOLE 3

Unité interne Console pour Systèmes MULTISplit

IC3-Y 27M÷53M

Outdoor unit for Multisplit Systems: MU2-Y

Outdoor unit for Multisplit Systems

MU2-Y

EZCOOL SINGLE Split with hiwall indoor unit

EZCOOL

SINGLE Split with hiwall indoor unit

ILA1-Y 27M÷70M

CRISTALLO2: SINGLE Split with hiwall indoor unit

CRISTALLO 2

SINGLE Split with hiwall indoor unit

IMA1-Y 27M ÷ 70M

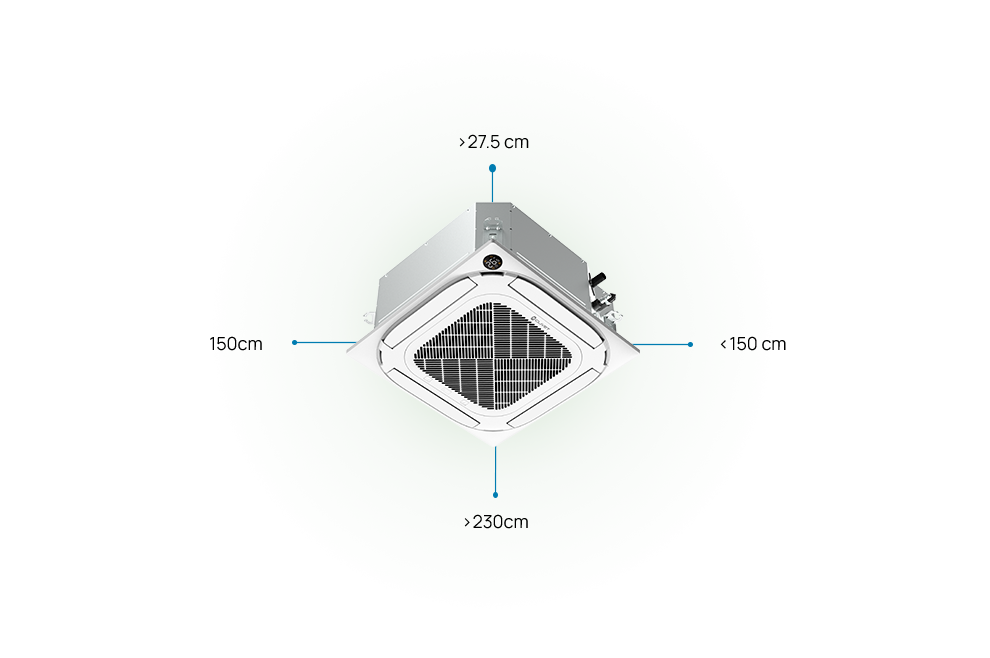

Optimised spaces.
Optimised spaces

Per un buon funzionamento dell'unità è fondamentale che vengano mantenute le distanze di rispetto indicate.

Technical Specifications

Power

Heating and cooling power

from 2.7 kW to 5.3 kW

Operating range

Operating range in Heating

from 0 to 30 °C

Operating range in Cooling

from 17 to 32 °C

Features

Air flow m3/h

from 300 to 680

Noise level

From 32 db (A) to 44 dB(A)

Dimensions

Dimensions (Width x Depth x Height)

570x570x245

External diameters

1/4" e 3/8" with size 27M e 35M 1/4" e 1/2" with size 53M
